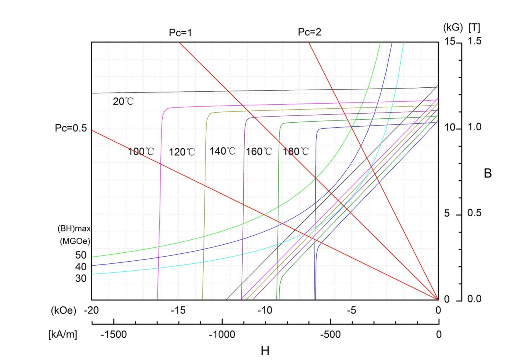

Demagnetization Curves at Different Temperature:
Magnetic Characteristics:
Residual flux density Br | [T] | 1.22-1.29 |
(kGs) | 12.2-12.9 | |
Coercive force Hcb | [kA/m] | ≥915 |
(kOe) | ≥11.5 | |
Intrinsic coercive force Hcj | [kA/m] | ≥1990 |
(kOe) | ≥25 | |
Maximum energy product (BH)max | [kJ/m3] | 287-318 |
(MGOe) | 36-40 | |
